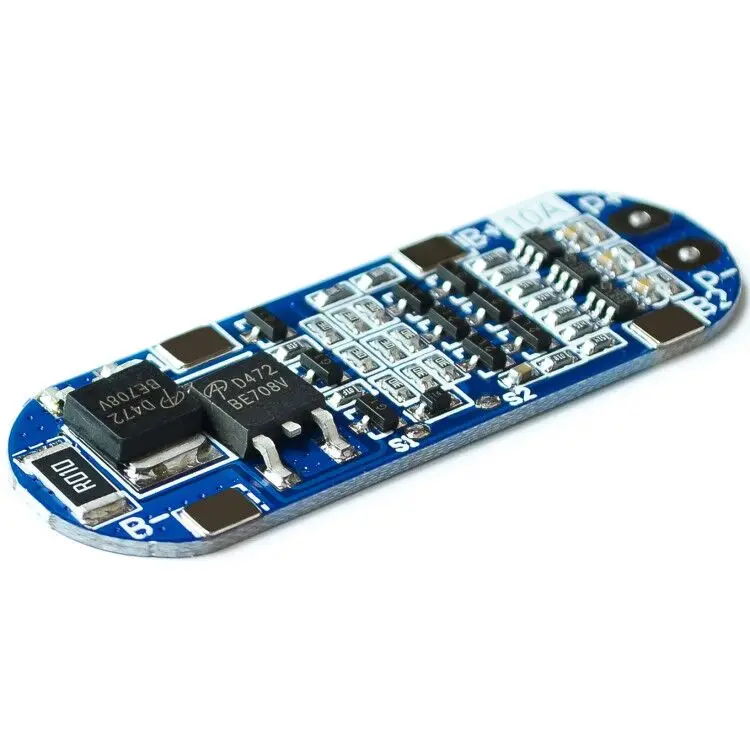

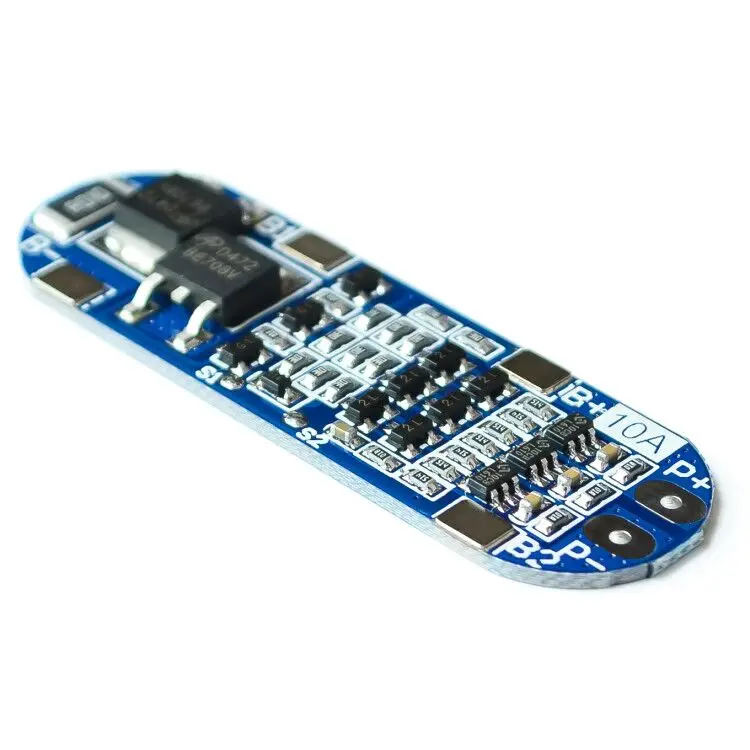

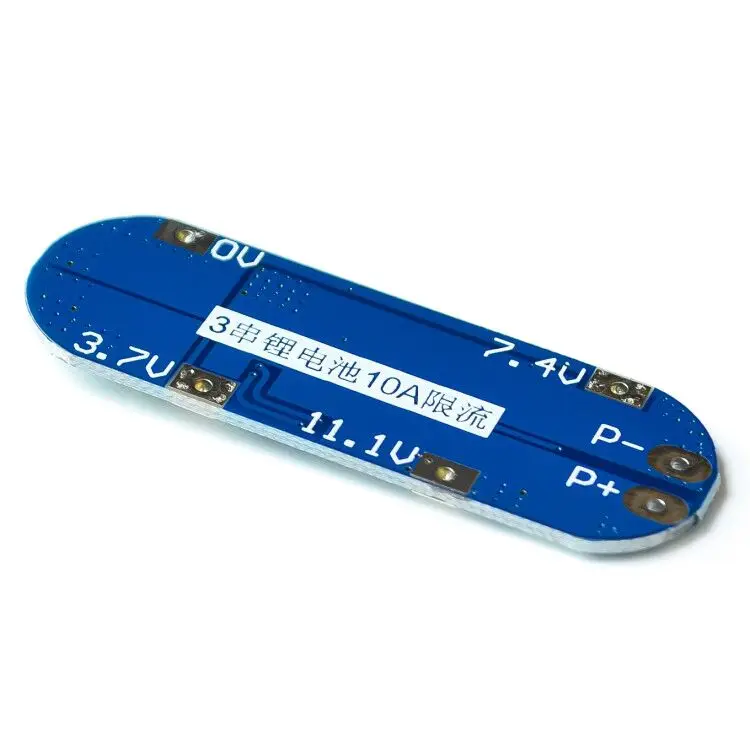

3S 10A 11.1V 12V 12.6V Lithium Battery Charger Protection Board Module for 18650 Li-ion Lipo Battery Cells BMS 3.7V
79.00৳
- Maximum discharge current: 10A
- Overcharge detection voltage: 4.25-4.35V±0.05V
- Over-discharge detection voltage: 2.3-3.0V±0.05V
- Maximum working current: 5A-8A
- Transient current: 9A-10A
- Operating temperature: -40~50 degree
- Storage temperature: -40~80 degree
- Quiescent current: <6uA
- Internal resistance: <60mΩ Service life: >30,000hours
- Short circuit protection.
- Overcharge protection.
- Over-discharge protection.
- Overcurrent protection.
- Can be applied to various 3.7V lithium core.
Description
3S 10A Li-ion Lithium Battery 18650 Charger Protection Board 11.1V 12.6V
The attribute of the lithium battery protection board:
Model: HX – 3 s – FL10 – A charging voltage range: 4.25 + / – 0.05 v to 4.35 v

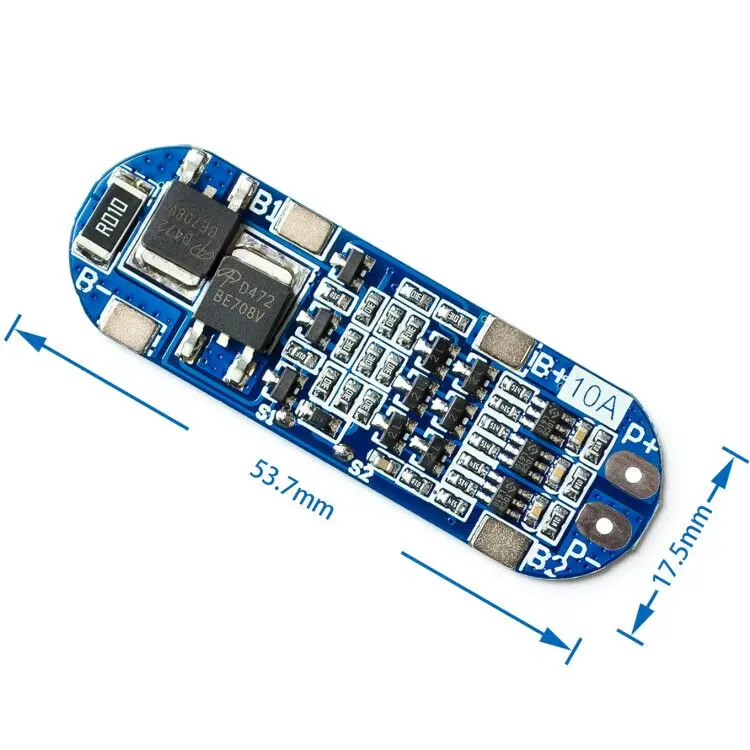

Size: 53 * 17 * 4.0 mm discharge voltage range: 2.3 + / – 0.05 v to 3.0 v
Maximum working current: 6-8 a working temperature: – 40 – + 50
Maximum instantaneous current: 10 to 13 a storage conditions: – 40 – + 80
Static electricity: less than 30 ua useful life: more than 30000 hours
Resistance: less than 100 m short circuit protection, can protect, delay the recovery.
Charging voltage: 12.6 V – 13 V
